À partir de 8,55 CHF HT

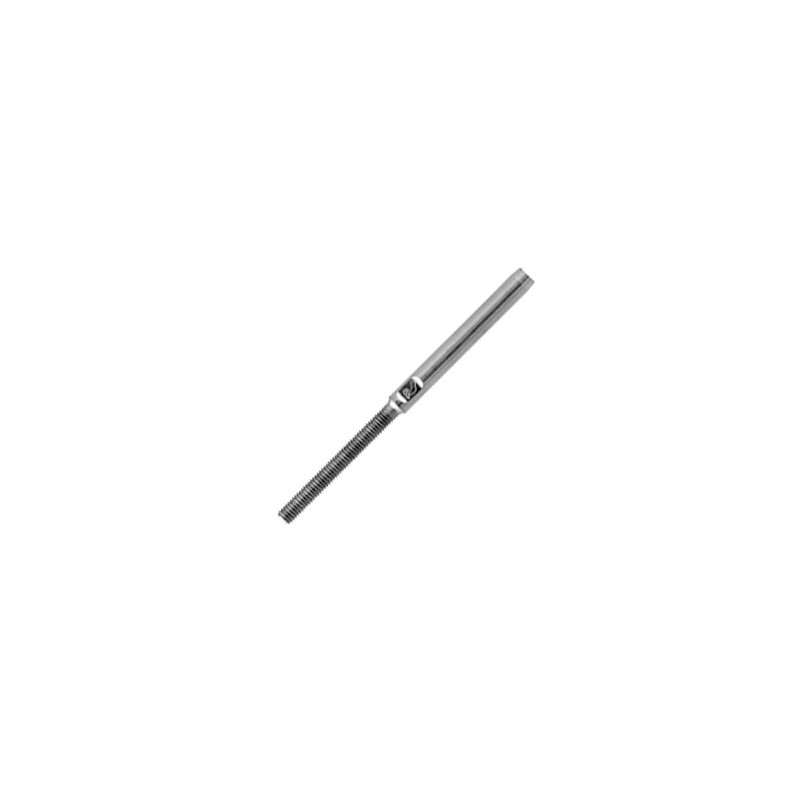

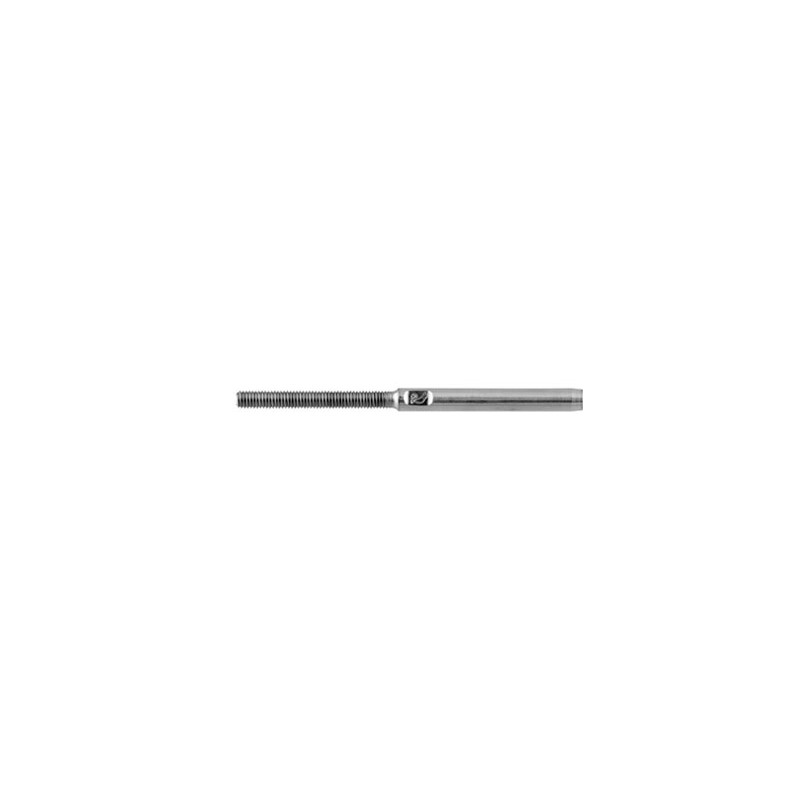

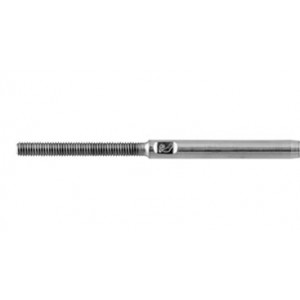

Embout à sertir à une extrémité, corps fileté métrique pas à droite de l'autre.
Standard nautisme et remplissage garde-corps.
En inox 316 (Marine) - résistance mécanique garantie
Date de disponibilité: 18-06-2015

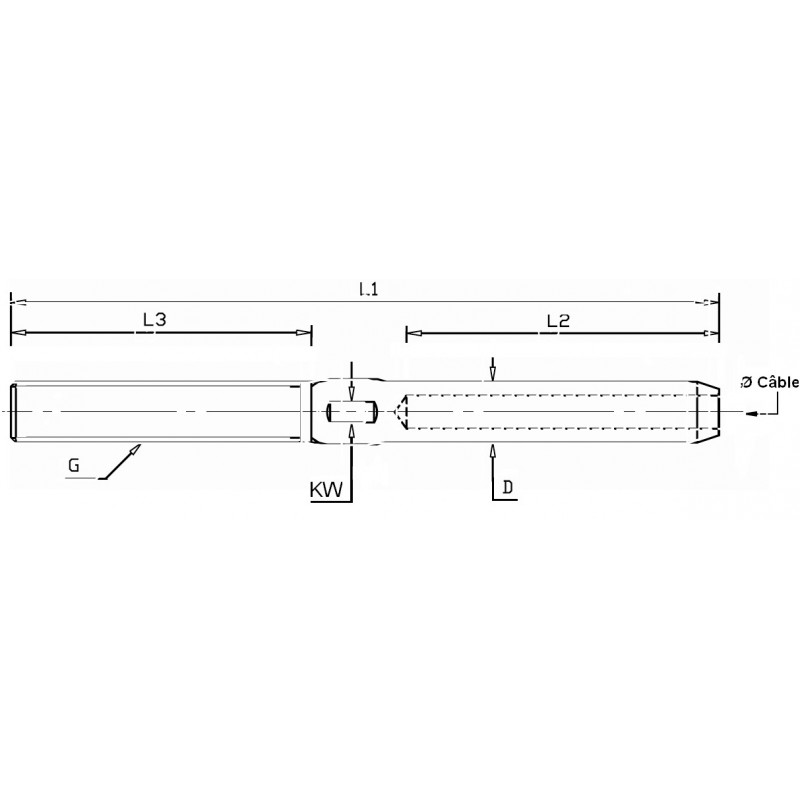

| Référence | D | Filetage G | Ø | KW | L1 | L2 | L3 | R. r. théorique | Prix unitaire | Poids | Quantité | Acheter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IS72025 | 5.5 | M5 | 2 mm | 4.5 | 80 | 24.0 | 42.0 | 800 kg | 8,55 CHF | 14 g | ||
| IS72036 | 6.4 | M6 | 3 mm | 5.0 | 100 | 38.0 | 48.0 | 1200 kg | 6,45 CHF | 20 g | ||
| IS72046 | 7.5 | M6 | 4 mm | 6.0 | 110 | 45.0 | 48.0 | 1200 kg | 7,40 CHF | 24 g | ||
| IS72048 | 7.5 | M8 | 4 mm | 6.0 | 117.0 | 45.0 | 57.0 | 1700 kg | 7,40 CHF | 30 g | ||
| IS72058 | 9.00 | M8 | 5 mm | 7.0 | 125.0 | 51.0 | 57.0 | 2200 kg | 8,30 CHF | 40 g | ||
| IS72050 | 9.00 | M10 | 5 mm | 7.0 | 130 | 51.0 | 63.0 | 2500 kg | 8,85 CHF | 45 g | ||
| IS72060 | 12.6 | M10 | 6 mm | 11.0 | 145 | 64.0 | 63.0 | 3500 kg | 15,30 CHF | 84 g | ||
| IS72062 | 12.6 | M12 | 6 mm | 11.0 | 162 | 64.0 | 80.0 | 5100 kg | 16,85 CHF | 110 g | ||
| IS72072 | 14.20 | M12 | 7 mm | 12.0 | 170 | 70.0 | 80.0 | 5100 kg | 22,50 CHF | 133 g | ||
| IS72074 | 14.20 | M14 | 7 mm | 12.0 | 180 | 70.0 | 89.0 | 6800 kg | 23,40 CHF | 160 g | ||
| IS72082 | 16.00 | M12 | 8 mm | 14.0 | 185 | 83.0 | 80.0 | 5100 kg | 32,35 CHF | 192 g | ||
| IS72084 | 16.00 | M14 | 8 mm | 14.0 | 194 | 83.0 | 89.0 | 6900 kg | 28,35 CHF | 200 g | ||
| IS72086 | 16.00 | M16 | 8 mm | 14.0 | 203 | 83.0 | 100.0 | 8700 kg | 28,75 CHF | 230 g | ||
| IS72006 | 17.80 | M16 | 10 mm | 15.0 | 210 | 89.0 | 100.0 | 9400 Kg | 35,95 CHF | 350 g | ||
| IS72020 | 20.00 | M20 | 12 mm | 17.0 | 249 | 105.0 | 120.0 | 11400 kg | 52,45 CHF | 450 g | ||
| IS72022 | 21.40 | M20 | 12 mm | 19.0 | 265 | 120.0 | 120.0 | 14200 Kg | 55,30 CHF | 500 g | ||
| IS72042 | 25.00 | M22 | 14 mm | 22.0 | 308 | 140.0 | 140.0 | 15900 Kg | 76,95 CHF | 768 g | ||
| IS72662 | 28.00 | M22 | 16 mm | 25.0 | 333 | 160.0 | 140.0 | 18200 kg | 0,00 CHF | 978 g | ||
| IS72064 | 28.00 | M24 | 16 mm | 25.0 | 363 | 160.0 | 170.0 | 19400 Kg | 104,40 CHF | 1110 g | ||
| IS72023 | 40.50 | M30 | 22 mm | 36.0 | 480 | 230.0 | 200.0 | 28000 kg | 328,35 CHF | 3140 g | ||
| IS72055 | 5.50 | M5 | 2.5 mm | 4.5 | 82 | 27.0 | 42.0 | 800 kg | 8,20 CHF | 15 g | ||
| IS72066 | 46.00 | M36 | 26 mm | 41.0 | 550 | 280.0 | 220.0 | 41000 kg | 414,75 CHF | 4700 g | ||
| IS72000 | 17.80 | M20 | 10 mm | 15.0 | 230 | 89.0 | 120.0 | 9700 kg | 47,65 CHF | 350 g | ||
| IS72097 | 34.50 | M27 | 19 mm | 30.0 | 425 | 200.0 | 180.0 | 23000 kg | 227,25 CHF | 2090 g |
