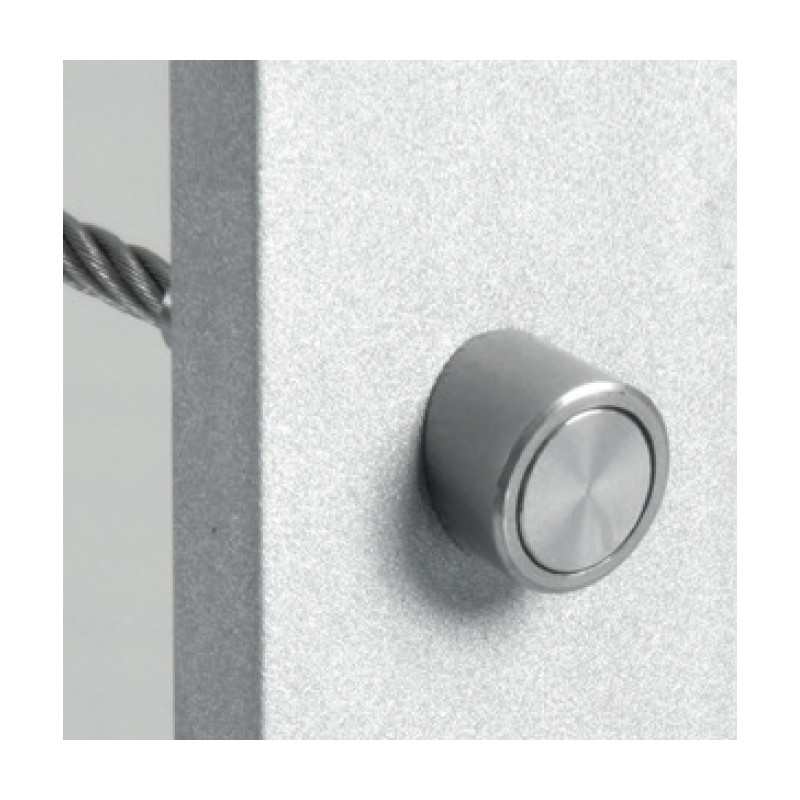

Cale d'angle pour montage d'une terminaison conique sur poteau incliné ou départ de câble en angle.
Date de disponibilité: 0000-00-00

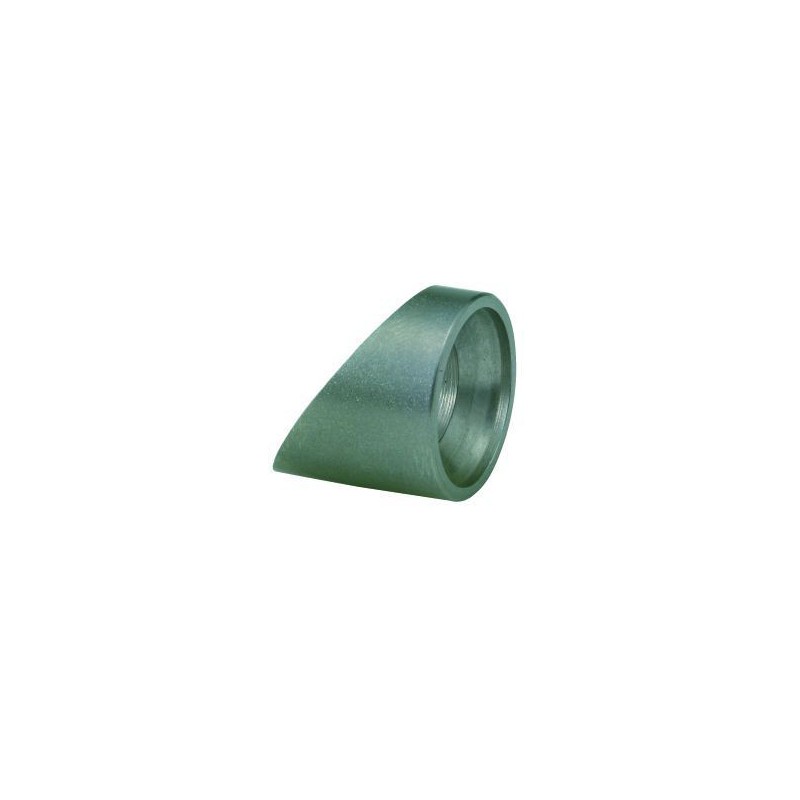

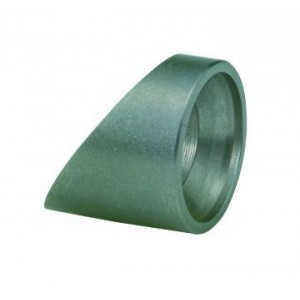

Cale d'angle pour terminaison cône
Cale d'angle pour montage d'une terminaison conique sur poteau incliné ou départ de câble en angle.
Destinataire :
* Champs requis
OU Annuler

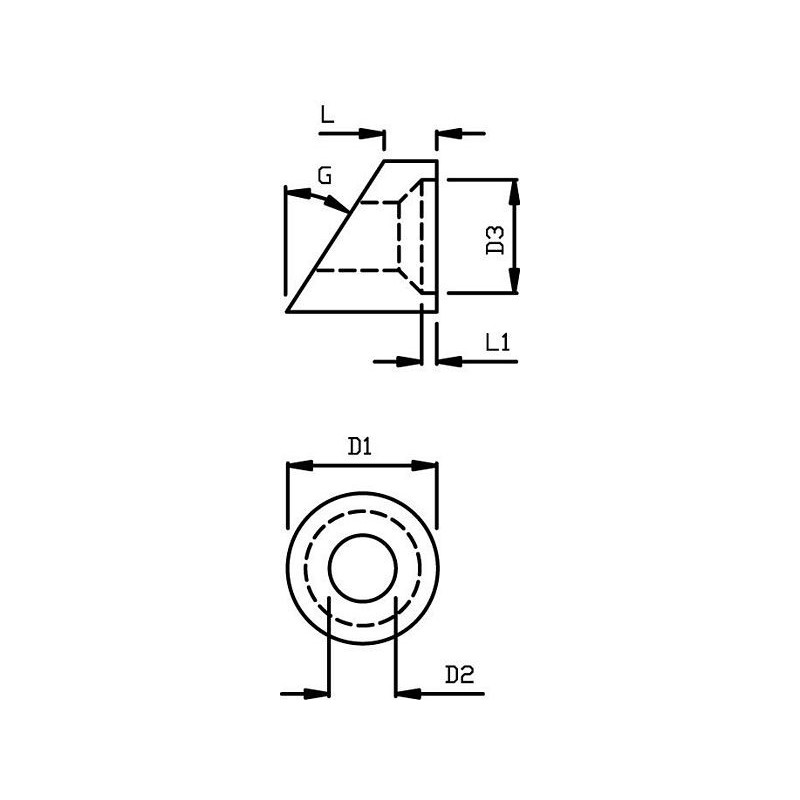

| Référence | Angle (°) | D1 | D2 | D3 | Ø câble | L | L1 | Poids |
|---|---|---|---|---|---|---|---|---|
| IS91703 | 20 | 11.0 | 5.8 | 8.3 | 3mm | 5.0 | 1.0 | 4 g |
| IS91704 | 20 | 13.0 | 6.8 | 10.3 | 4mm | 5.0 | 1.0 | 6 g |
| IS91705 | 20 | 14.0 | 8.0 | 12.0 | 5mm | 5.0 | 1.0 | 8 g |
| IS91706 | 20 | 17.0 | 9.5 | 14.5 | 6mm | 5.0 | 1.0 | 12 g |
| IS91713 | 25 | 11.0 | 5.8 | 8.3 | 3mm | 5.0 | 1.0 | 4 g |
| IS91714 | 25 | 13.0 | 6.8 | 10.3 | 4mm | 5.0 | 1.0 | 7 g |
| IS91715 | 25 | 14.0 | 8.0 | 12.0 | 5mm | 5.0 | 1.0 | 9 g |
| IS91716 | 25 | 17.0 | 9.5 | 14.5 | 6mm | 5.0 | 1.0 | 12 g |
| IS91723 | 30 | 11.0 | 5.8 | 8.3 | 3mm | 5.0 | 1.0 | 5 g |
| IS91724 | 30 | 13.0 | 6.8 | 10.3 | 4mm | 5.0 | 1.0 | 8 g |
| IS91725 | 30 | 14.0 | 8.0 | 12.0 | 5mm | 5.0 | 1.0 | 9 g |
| IS91726 | 30 | 17.0 | 9.5 | 14.5 | 6mm | 5.0 | 1.0 | 13 g |
| IS91733 | 35 | 11.0 | 5.8 | 8.3 | 3mm | 5.0 | 1.0 | 6 g |
| IS91734 | 35 | 13.0 | 6.8 | 10.3 | 4mm | 5.0 | 1.0 | 8 g |
| IS91735 | 35 | 14.0 | 8.0 | 12.0 | 5mm | 5.0 | 1.0 | 10 g |
| IS91736 | 35 | 17.0 | 9.5 | 14.5 | 6mm | 5.0 | 1.0 | 15 g |
| IS91743 | 40 | 11.0 | 5.8 | 8.3 | 3mm | 5.0 | 1.0 | 6 g |
| IS91744 | 40 | 13.0 | 6.8 | 10.3 | 4mm | 5.0 | 1.0 | 9 g |
| IS91745 | 40 | 14.0 | 8.0 | 12.0 | 5mm | 5.0 | 1.0 | 11 g |
| IS91746 | 40 | 17.0 | 9.5 | 14.5 | 6mm | 5.0 | 1.0 | 16 g |
